詳細情報 |
|||
| 効率: | F5、F6、F7、F8、F9 | 最高の湿気: | 100% |
|---|---|---|---|
| サイズ: | カスタマイズされる | 材料: | ガラス繊維 |
| max.humidity: | 100% | 任意厚さ: | アルミニウム/GI:21、25、46;プラスチック:25 |
| フレーム: | alluminumの合金 | 使用法: | 前の空気状態フィルター |
| ハイライト: | アルミ合金 フレームf8のバッグ フィルタ,ガラス繊維F8のバッグ フィルタ,ACのためのF8 hepaフィルター |
||
製品の説明

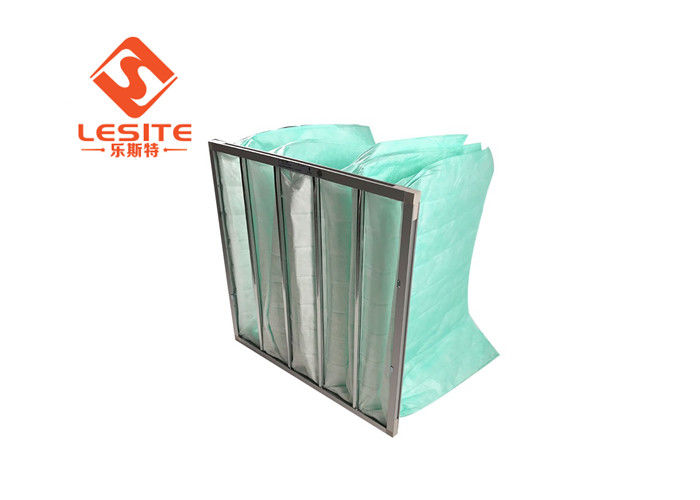

Small Resistance Aluminum Bag Filter Efficiency G4 M5 M6 F7 F8 F9
Performance and Application
* The fiberglass pocket filter is overlapped by nonwoven fabric way with superfine melt- blown glass fiber. This filter material
has good chemical resistance and low hygroscopicity.
* Large airflow, low resistance, and long service life.
* Be suitable for long term use in environment below 120℃.
* Widely used in medium filtration of ventilation and air conditioning system.
The air pre-filtration system for non-dust room, hospital, pharmaceutical factory, electronics factory, spray booth and other
filtration systems which are in high need of clean air.
Ultra-LSI factories, semiconductor factories, atomic force research center, dust-free rooms, laminar flow equipemt,
workbenches and other ultra-high clean requirements occasions.
Efficiency: G3 / G4
Media: Synthetic fiber / Polyester fiber
Pocket type: Ultrasonic bag/Sewing bag
Frame: Extruded aluminum / GI / Plastic
Optional thickness: Aluminum / GI: 21, 25, 46; Plastic: 25
Max Temperature: 50℃
Max Humidity: 100%
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
