詳細情報 |
|||
| 機能: | エア フィルター | 最高の湿気: | 100% |
|---|---|---|---|
| サイズ: | カスタマイズされる | 材料: | ガラス繊維 |
| 条件: | 新しい | 効率: | 99.97%、H13~H14 |
| 任意厚さ: | アルミニウム/GI:21、25、46;プラスチック:25 | ||
| ハイライト: | 99.97%アルミニウム バッグ フィルタ,G3アルミニウム バッグ フィルタ,G3ポケット袋のエア フィルター |
||
製品の説明

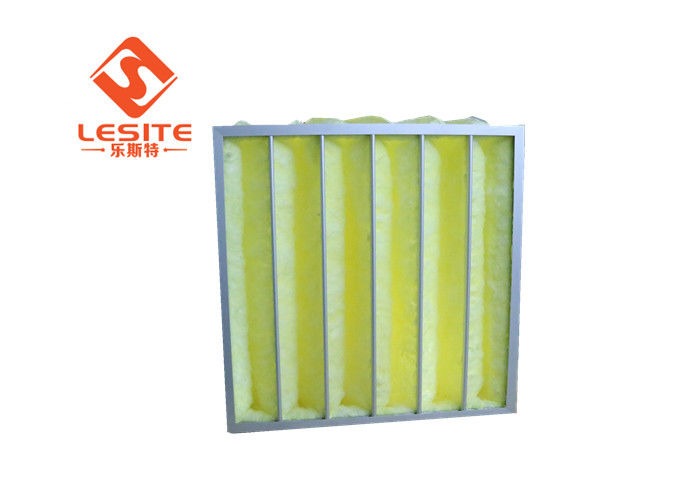

Synthetic Fiber Pocket Pre Filter Industrial Air Pocket Bag Filter With Aluminum Frame
Material And Operation Conditions
Efficiency: G3 / G4
Media: Synthetic fiber / Polyester fiber
Pocket type: Ultrasonic bag/Sewing bag
Frame: Extruded aluminum / GI / Plastic
Optional thickness: Aluminum / GI: 21, 25, 46; Plastic: 25
Max Temperature: 50℃
Max Humidity: 100%
● Large media area and dust holding capacity
● Washable (Limited)
● Large air volume, low resistance and high efficiency
● Relative humidity up to 100%
● 100% factory inspection
● Third party authority certification (VTT test)
Media: Synthetic fiber / Polyester fiber
Pocket type: Ultrasonic bag/Sewing bag
Frame: Extruded aluminum / GI / Plastic
Optional thickness: Aluminum / GI: 21, 25, 46; Plastic: 25
Max Temperature: 50℃
Max Humidity: 100%
Product Feature
● Washable (Limited)
● Large air volume, low resistance and high efficiency
● Relative humidity up to 100%
● 100% factory inspection
● Third party authority certification (VTT test)
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
Description
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Application
It is extensively used in the ventilation systems of the central air conditionings and the purification of pharmacy industry, hospital, electron industry, and food industry, etc.
Additionally, they can also be used in the frontend filtration of the highefficiency air filters to reduce their loads and prolong their service lives.
