詳細情報 |
|||
| 効率: | 99.97%、H13~H14 | 最高の湿気: | 100% |
|---|---|---|---|
| サイズ: | カスタマイズされる | 材料: | ガラス繊維 |
| max.humidity: | 100% | 任意厚さ: | アルミニウム/GI:21、25、46;プラスチック:25 |
| ハイライト: | 45%のペンキのポケット ブース フィルター,0.5ミクロンのペンキのポケット ブース フィルター,45% 0.5ミクロン フィルター |
||
製品の説明

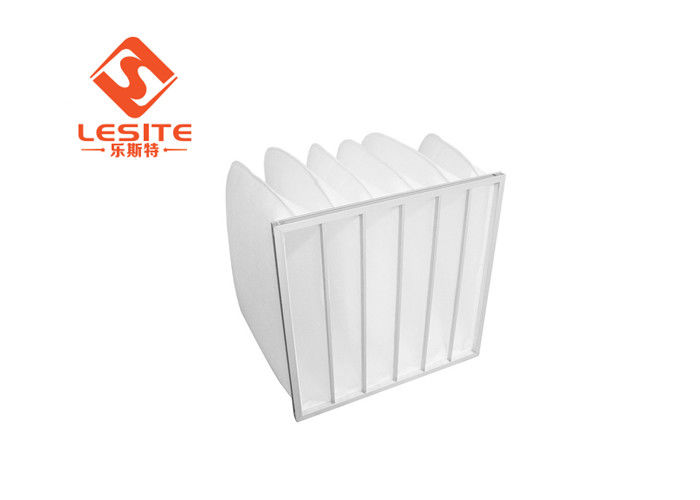

Large Dust Collection Aluminum Bag Filter Efficiency 45%~95% 0.5μM
Material and operation
| media | non-woven |
| pocket type | sewing bag,ultrasonic bag |
| frame | aluminum/galvanized/stainless steel/wood frame |
| efficiency | 45%~95% 0.5μm |
| max.temperature | 80°C |
| max.humidity | 100% |
| optional aluminum | 17~50mm |
| optional plastic | 21mm |
Product features of the HVAC Industry Synthetic Fiber Medium F9 Bag Filter
1.The bag filter pocket filter adopt superfine synthetic filter,large dust holding capacity,efficiency stability in the life cycle of using.
2.Selection of optimized V-shaped bag structure,small resistance,long service life.
Application of the HVAC Industry Synthetic Fiber Medium F9 Bag Filter
It is ideal configuration products to widely use in ventilation system.
Technology parameters of the HVAC Industry Synthetic Fiber Medium F9 Bag Filter
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
Application
It is extensively used in the ventilation systems of the central air conditionings and the purification of pharmacy industry, hospital, electron industry, and food industry, etc.
Additionally, they can also be used in the frontend filtration of the highefficiency air filters to reduce their loads and prolong their service lives.
